316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1

Name: 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div 1
Brand: Floating Head Heat Exchanger
Price: 1 USD

Wholesale 316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1 from china suppliers

Design Standard : ASME Section VIII, TEMA (Tubular Exchanger Manufacturers Association)

Brand Name : Floating Head Heat Exchanger

Model Number : AES Type

Certification : ASME Section VIII, TEMA (Tubular Exchanger Manufacturers Association)

Place of Origin : Chemical processing, oil refining, power generation, food processing, etc.

Supply Ability : 10 SETS/MONTH

Delivery Time : 60-90 DAYS

Packaging Details : Standard wooden crates or custom packaging based on customer requirements.

Material : Stainless Steel 316L

Applications : Applications

Compliance Standards : ASME Section VIII Div. 1, TEMA Standards, PED (Pressure Equipment Directive),

Contact Now

316L Floating Head Heat Exchanger AES Type ASME Section VIII Div. 1

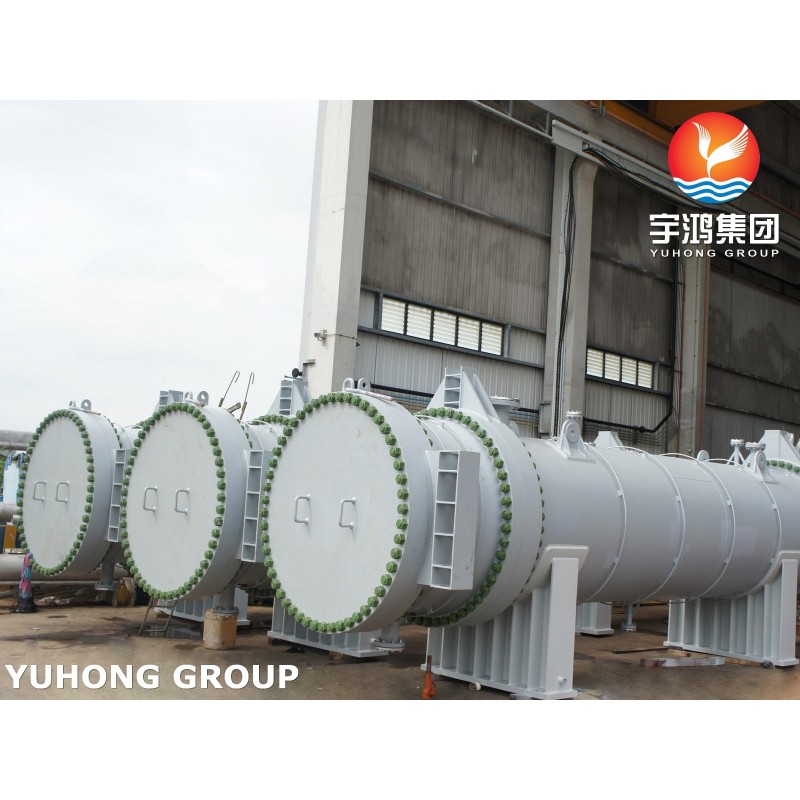

The 316L Floating Head Heat Exchanger (AES Type) is designed per ASME Section VIII Div. 1, ideal for chemical processing, oil refineries, power plants, and food industries. It efficiently handles cooling, heating, and condensing tasks with excellent corrosion resistance and easy maintenance for high-performance systems.

Component Material List

Component	Material	Notes
Shell	316L Stainless Steel	Corrosion-resistant, suitable for high-temperature and chemical environments.
Tube Bundle	316L Stainless Steel	High thermal conductivity and excellent resistance to pitting and crevice corrosion.
Floating Head Cover	316L Stainless Steel	Allows easy cleaning of the tube bundle; corrosion-resistant.
Tube Sheets	316L Stainless Steel	Prevents leaks between shell and tube sides; provides structural stability.
Baffles/Support Plates	316L Stainless Steel	Ensures proper flow distribution and supports the tubes.
Gaskets	PTFE (Polytetrafluoroethylene) / Graphite	High chemical resistance and sealing performance under high temperatures and pressures.
Bolts and Nuts	Stainless Steel 316L or ASTM A193 Grade B8	High mechanical strength and corrosion resistance.
Flanges	Stainless Steel 316L	Provides strong and reliable connections between components.
Nozzles (Inlet/Outlet)	Stainless Steel 316L	Ensures smooth flow of fluids into and out of the heat exchanger.

Component Dimension List

Component	Dimension Range	Notes
Shell Diameter	200 mm – 2000 mm	Customizable based on specific heat transfer requirements.
Tube Outer Diameter (OD)	10 mm – 50 mm	Standard sizes are 19.05 mm, 25.4 mm, and 38.1 mm.
Tube Wall Thickness	0.5 mm – 3 mm	Thickness depends on pressure and temperature requirements.
Tube Length	1 m – 12 m	Standard lengths are 6 m and 12 m, but custom lengths are available.
Floating Head Clearance	50 mm – 300 mm	Allows for easy removal and cleaning of the tube bundle.
Baffle Spacing	100 mm – 400 mm	Optimized for flow distribution and heat transfer efficiency.
Nozzle Diameter	50 mm – 600 mm	Sized according to fluid flow rate and pressure requirements.
Flange Dimensions	ASME B16.5 Standards	Customization available for specific pressure ratings (Class 150, 300, 600, etc.).

Required Testing

Test Name	Description	Purpose
Hydrostatic Test	Pressurizing shell and tube sides with water to test for leaks or structural failures.	Ensures the heat exchanger can handle operating pressures.
Pneumatic Test	Pressurizing with air or inert gas to check for leaks in a dry environment.	Ensures safety in systems where water-based testing is not suitable.
Radiographic Testing (RT)	X-ray inspection of welds to detect internal defects.	Ensures weld quality and structural integrity.
Ultrasonic Testing (UT)	Uses high-frequency sound waves to detect material defects or thickness variations.	Ensures tube and shell material meet thickness and quality standards.
Dye Penetrant Test (PT)	Applies dye to detect surface cracks or defects in welds and other components.	Verifies the surface integrity of critical components.
Material Composition Test	Spectrometric analysis to verify the chemical composition of 316L stainless steel components.	Ensures compliance with material standards and corrosion resistance requirements.
Hardness Testing	Measures the hardness of 316L material to confirm mechanical properties.	Ensures the material is suitable for pressure and temperature conditions.
Leak Test	Testing with helium or nitrogen to detect micro-leaks in the system.	Ensures complete sealing for high-performance applications.

Applications by Industry

Industry	Application
Chemical Processing	Heat exchangers for cooling, heating, or condensing chemical fluids.
Oil & Gas	Refinery heat exchangers for crude oil cooling, gas separation, and distillation processes.
Power Generation	Steam condensers and feedwater heaters in thermal and nuclear power plants.
Food & Beverage	Pasteurization, cooling, and heating systems for food and beverage production.
Marine & Offshore	Cooling systems for ship engines, fuel oil, and lubricants.

Applications in Specific Equipment

Equipment Name	Function of Heat Exchanger
Chemical Reactor	Controls the temperature of chemical reactions by transferring heat in or out of the reactor.
Crude Oil Distillation Unit	Preheats crude oil and cools the separated distillates.
Steam Condenser	Converts exhaust steam from turbines into water for reuse.
Evaporator	Facilitates the evaporation of liquids in food and chemical industries.
Air Compressor Cooler	Cools compressed air to reduce temperature and moisture content.
Lube Oil Cooler	Maintains the temperature of lubricating oil in engines and gearboxes.
