ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component

Density : 8.1 g/cm3

Support Plate : ASTM B177 C70600

Brand Name : YUHONG

Model Number : ASTM B177 C70600

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 500KGS

Price : NEGOTIABLE

Payment Terms : L/C,T/T

Supply Ability : According To Client's Request

Delivery Time : 10-90 Days

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Size : Various sizes available

Dimension : ASTM, ANSI, API, JIS, ASME, and DIN etc.

Thickness : customizable

Melting Point : 1443 °C (2430 °F)

Contact Now

ASTM B177 C70600 Square Tubesheet For Heat Exchangers

C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.

C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.

Copper Nickel 90/10 Chequered Plate Equivalent Grade
STANDARD WERKSTOFF NR. UNS
Cu-Ni 90/10 2.0872 C70600
Cu-Ni 90/10 Cold Rolled Sheets Chemical Composition
Grade Cu Mn Pb Fe Zn Ni
Cupro Nickel 90/10 88.6 min 1.0 max .05 max 1.8 max 1 max 9-11 max
Cupro Nickel 90/10 Polished Cold Drawn Plates Mechanical Properties
Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Cu-Ni 90/10 8.1 g/cm3 1443 °C (2430 °F) Psi -80,000, MPa -551 Psi - 35,000, MPa - 241 30 %
Applications:
  • Shipbuilding
  • Power plants
  • Desalination plants
  • HVAC systems

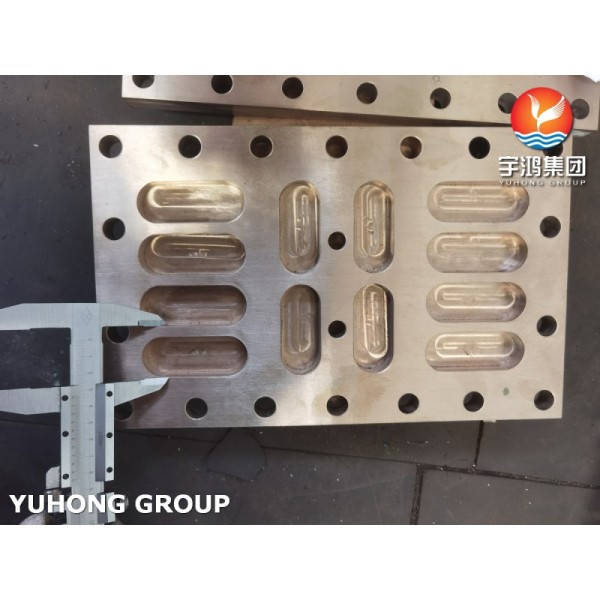

ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
